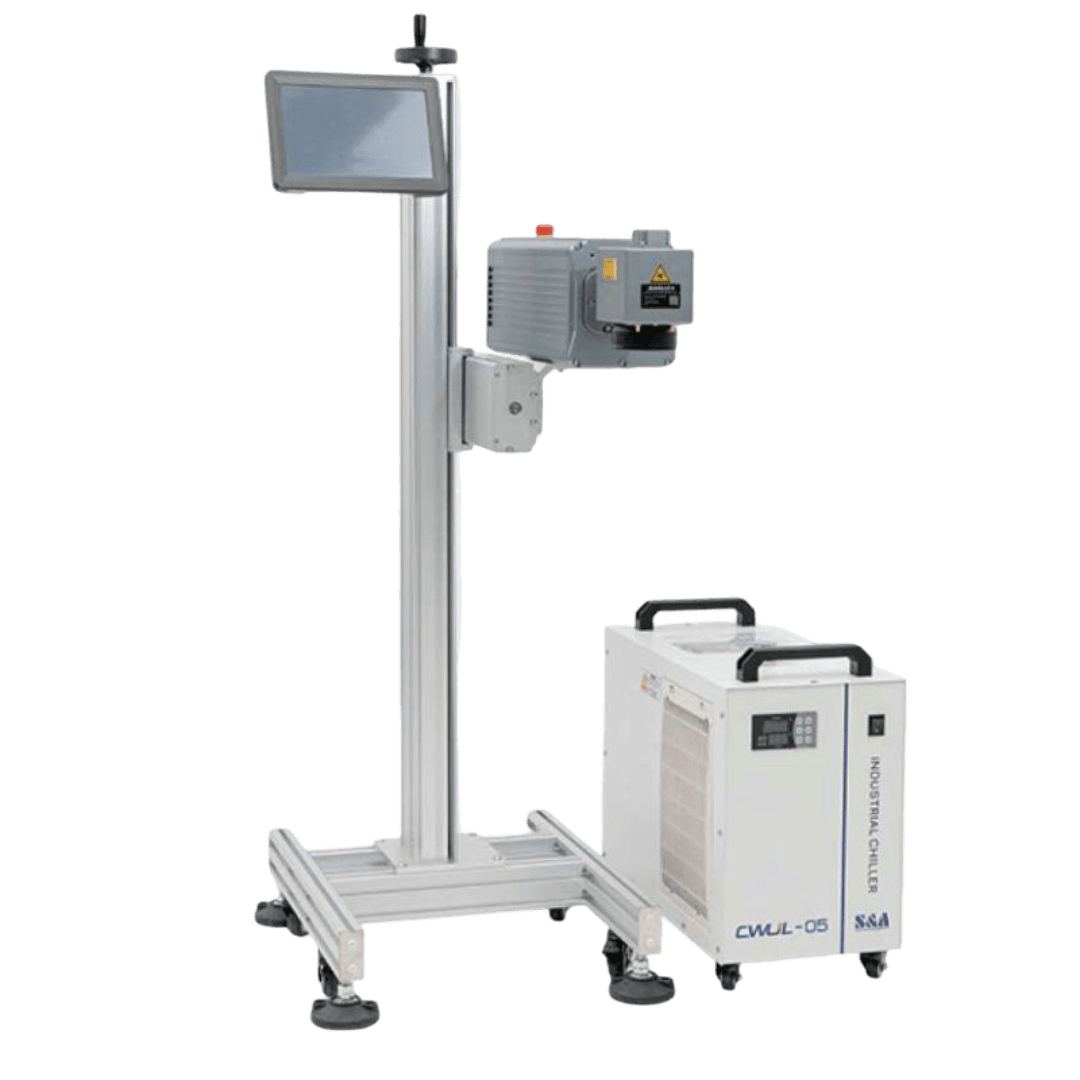

PMS Laser UV
PMS Laser UV is an industrial laser marking system for permanent, ink-free marking of text and codes on parts and packaging. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Project | Parametertable | PMS UV3W | PMS UV5W | PMS UV10W | PMS UV15W |
|---|---|---|---|---|---|
| characteristic | Machine material | All aluminum sandblasting oxidation | |||
| Laser | The service life is more than 20000-30000 hours | ||||
| Laser wavelength | 355nm | ||||
| output power | 4W | 6W | 12W | 17W | |
| Marking speed | 120000mm/s | ||||
| controller | 10.2 inch touch controller | ||||
| Cooling system | Water cooling (with chiller) | ||||
| parameter | Focus lens | 210mm | |||
| Minimum linewidth | 0.01mm | ||||
| Repetition accuracy | 0.001mm | ||||
| Marking range | 70mm×70mm / 110mm×110mm / 200mm×200mm / 300mm×300mm (Optional) | ||||
| Positioning mode | Red light indication | ||||
| Number of rows | Any line within the marking range | ||||
| Production line speed | 0~130m/min (depending on the material) | ||||
| Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | ||||
| jurisdiction | Multi user management authority | ||||
| operating system | Linux system | ||||
| software | Inkjet mode | Static, analog, encoder | |||
| Reserved signal | Start, print status, finish, fault | ||||
| data protection | With power failure data protection energy | ||||
| monitor | Provide overspeed alarm function | ||||
| De crossing | Automatic removal of intersections | ||||
| Coding software | Single and double machine code sending | ||||
| support type | typeface | Chinese and English, numbers, traditional, etc | |||
| file format | BMP / DXF / HPGL / JPEG / PLT | ||||
| bar code | CODE39, CODE128, CODE126, QR | ||||
| servicing parameter | Power Supply | 220V / 50HZ | |||
| Power consumption | 800W | ||||
| Net weight of machine | 40kg | ||||
| Overall dimension | 640mm × 160mm × 206mm | ||||
| environment requirement | External temperature 0–45°C; humidity 95 | ||||
