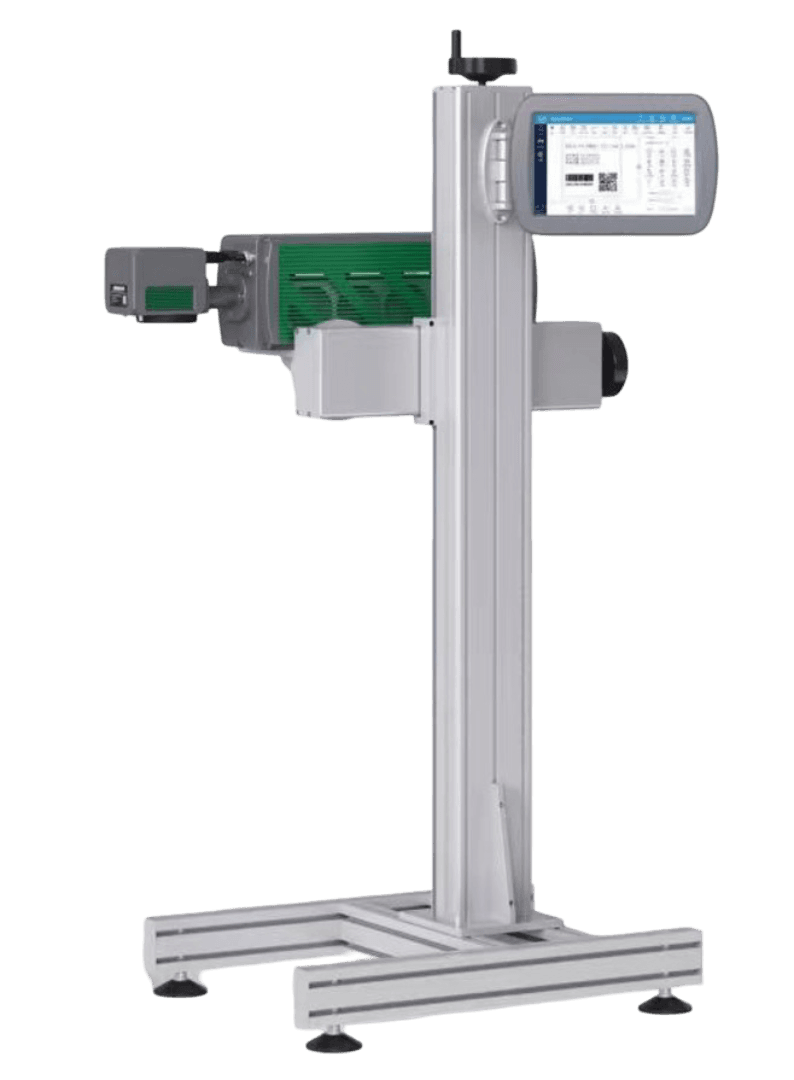

PMS Laser Co2
PMS Laser Co2 is an industrial laser marking system for permanent, ink-free marking of text and codes on parts and packaging. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| project | Parametertable | CO2-30W | CO2-40W | CO2-60W |
|---|---|---|---|---|
| characteristic | Machine material | All aluminum sandblasting oxidation | ||
| Laser | The service life is more than 20000-30000 hours | |||
| Laser wavelength | 1060nm | |||
| output power | ≥38W | ≥43W | ≥70W | |
| Marking speed | ≤120000mm/s | |||
| controller | 10.2 inch touch controller | |||
| Cooling system | Air cooling | |||
| parameter | Focus lens | 145mm | ||
| Minimum linewidth | 0.03mm | |||
| Repetition accuracy | 0.01mm | |||
| Marking range | 110mm × 110mm (optional) | |||
| Number of rows | Any line within the marking range | |||
| Production line speed | 0–130m/min (depending on the material) | |||
| Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | |||
| jurisdiction | Multi user management authority | |||
| operating system | Linux system | |||
| Inkjet mode | Static, analog, encoder | |||
| Software | Reserved signal | Start, print status, finish, fault | ||
| data protection | With power failure data protection energy | |||
| monitor | Provide overspeed alarm function | |||
| De crossing | Automatic removal of intersections | |||
| Coding software | Single and double machine code sending | |||
| typeface | Chinese and English, numbers, traditional, etc | |||
| Support type | file format | BMP/DXF/HPGL/JPEG/PLT | ||
| bar code | CODE39, CODE128, CODE126, QR | |||
| Power Supply | 220V/50HZ | |||
| Power consumption | 800W | |||
| Servicing parameters | Net weight of machine | 38kg | ||
| Overall dimension | nose: 640mm × 178mm × 150mm | |||
| environment requirement | External temperature 0℃ – 45℃; humidity ≤95 | |||
