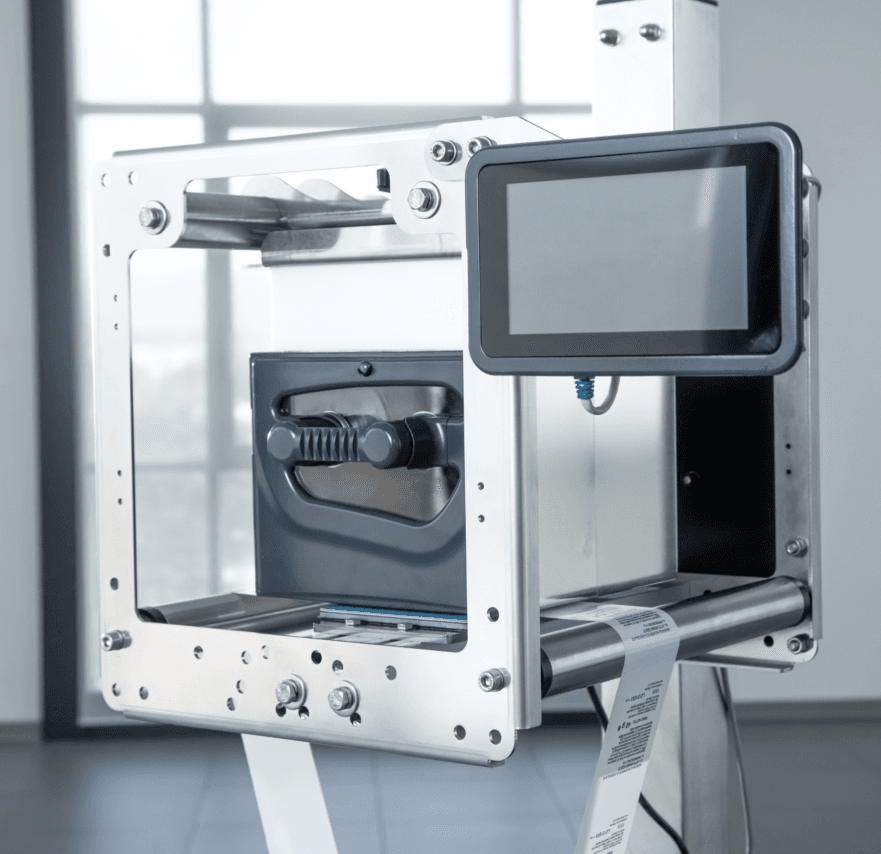

EIDOS XTO2 IE/CE – Thermal Transfer Overprinter
EIDOS XTO2 IE/CE is a thermal transfer overprinter for printing dates, batch codes, barcodes and text on flexible packaging films. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| SPECIFICATIONS | XTO 2” INTERMITTENT | XTO 2” CONTINUOUS | |
|---|---|---|---|
| Printing | Printing Mode | Intermittent / continuous on the same print unit | |
| Technology | Thermal transfer | ||
| Resolution | 300 dpi; 12 dots/mm | ||
| Speed |
300 mm/s (within safe operating area) Up to 1000 mm/s (feasibility check necessary) |
100 – 500 mm/s (within the safe operating area) Min. 25 mm/s, max 700 mm/s (feasibility check necessary) |
|
| Print rate with ribbon 1200 m long |
Up to 100 prints/min at label length of 50 mm Up to 150 prints/min at label length of 10 mm |
Up to 80 prints/min at label size 50 x 50 mm Up to 115 prints/min at label size 30 x 10 mm |
|
| Check safe operating area for other label lengths | |||
| Maximum print area | 53 x 100 mm (W*L) | 53 x 600 mm (W*L) | |
| Ribbon length |
1200 mtr; on 1” plastic core Roll diameter max. 110 mm |
||
| Ribbon Save | Yes | ||
| Patented Quickribbon X-Loader | Change ribbon roll in less than 1 minute | ||
| Ribbon qualities | Wax-resin; resin | ||
| Print data | Fonts | Windows true type; Arial internal; Various heights and shapes; Unicode and UTF-8 code | |
| Barcodes | 1d, 2d barcodes; Datamatrix; QR codes; Databar; PDF417 | ||
| Logos | BMP; JPG; TIFF; PNG; GIF; PCX formats | ||
| Codes | All kind of date code, serial numbers, production codes, … | ||
| Label creation | Label design software; EIDOS Easycode design software; printer language programming | ||
| Controller/ HMI |
7” full colour capacitive touchscreen Powered via ethernet Incl. intuitive user interface. For status info, print layout WYSIWYG; multilingual, diagnostics, system settings |
||
| Dimensions | 215*133*33 mm (W/H/D) | ||
| Cable length | 1,5 mtr (controller to printer) | ||
| Signal interfaces | 25 D-sub Connector for IO connection to packaging machine | ||
| Data Interfaces printer | Ethernet 10/100; 2x USB 2.0 host RS 232 (9 pin, baudrate 115200) | ||
| Physical data printer | Power supply | Input voltage 85–265; Input frequency 50/60 Hz | |
| Dimensions | 225*178*228 mm (W/H/D) | ||
| Environmental | Operation temp 5° – 40° C; humidity 10 – 60% non condensing | ||
| Options |
Power supply unit for packaging machines’ electrical cabinets Multiple selection of mounting brackets for integration in packaging machines Additional Quickribbon X-Loader Web User Interface (on HMI, PC or mobile device) Bracketry and interface cable for integration with XLS 20x labelers (intermittent) |
||
