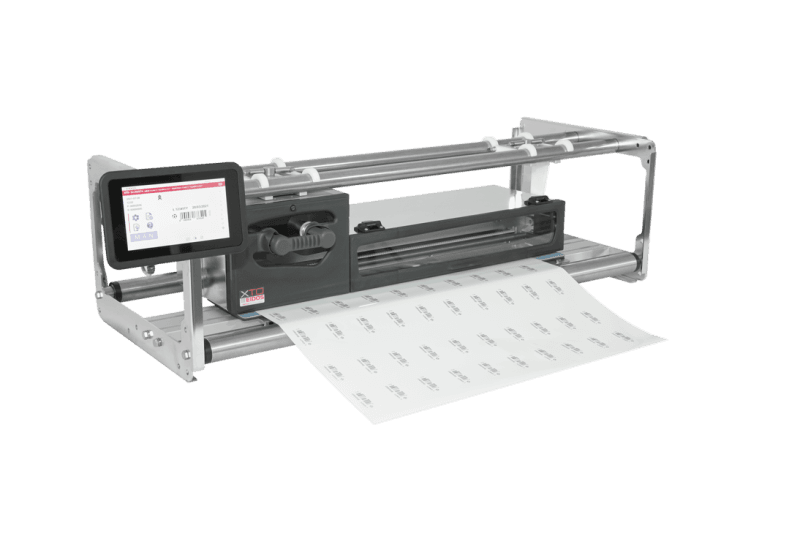

EIDOS XTO 2 IE/CE 20/40/60 – Thermal Transfer Overprinter
EIDOS XTO 2 IE/CE 20/40/60 is a thermal transfer overprinter for printing dates, batch codes, barcodes and text on flexible packaging films. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Perfect for integration into intermittent packaging systems Best quality overprinting with up to 600 mm print length For all applications in the food, pharmaceutical, personal care, automotive or other industries
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| 200 MM PRINT LENGTH | 400 MM PRINT LENGTH | 600 MM PRINT LENGTH | ||
|---|---|---|---|---|
| Printing | Printing Mode | Intermittent | ||
| Technology | Thermal Transfer | |||
| Resolution | 300 dpi; 12 dots/mm | |||
| Speed |
300 mm/sec (within safe operating area); Up to 800 mm/sec (feasibility check necessary) |
|||
| Print rate | Up to 45 prints/min with 200 mm print length | Up to 25 prints/min with 400 mm print length | Up to 18 prints/min with 600 mm print length | |
| Check safe operating area for other label lengths | ||||
| Maximum print area | 53 x 200 mm (W*L) | 53 x 400 mm (W*L) | 53 x 600 mm (W*L) | |
| Ribbon length | 1200 mtr; on 1” plastic core; roll diameter max. 110 mm | |||
| Ribbon Save | Yes | |||
| Ribbon qualities | Wax-resin; resin | |||
| Print data | Fonts | Windows true type; Arial internal; various heights and shapes; unicode and UTF-8 code | ||
| Barcodes | 1- and 2-dimensional barcodes; datamatrix; QR codes; databar; PDF417 | |||
| Logos | BMP; JPG; TIFF; PNG; GIF; PCX formats | |||
| Codes | All kind of date code, serial numbers, production codes, … | |||
| Label creation | Label design software; EIDOS Easycode design software; printer language programming | |||
| Controller / HMI |
7” full colour capacitive touchscreen Powered via ethernet Incl. intuitive user interface. For status info, print layout WYSIWYG; multilingual, diagnostics, system settings |
|||
| Dimensions | 215*133*33 mm (W/H/D) | |||
| Cable length | 1,5 mtr (controller to printer) | |||
| Signal interfaces | 25 D-sub Connector for IO connection to packaging machine | |||
| Data Interfaces printer | Ethernet 10/100; 2x USB 2.0 host RS 232 (9 pins, baudrate 115200) | |||
| Physical data printer | Power supply | Input voltage 85–265; input frequency 50/60 Hz | ||
| Dimensions | 225*178*334 mm (W/H/D) | 225*178*541 mm (W/H/D) | 225*178*736 mm (W/H/D) | |
| Environmental | Operation temp 5° – 40° C; humidity 10 – 60% non condensing | |||
| Options |
IP 65 power supply unit Multiple selection of mounting brackets for integration in packaging machines Web User Interface (on HMI, PC or mobile device) |
|||
