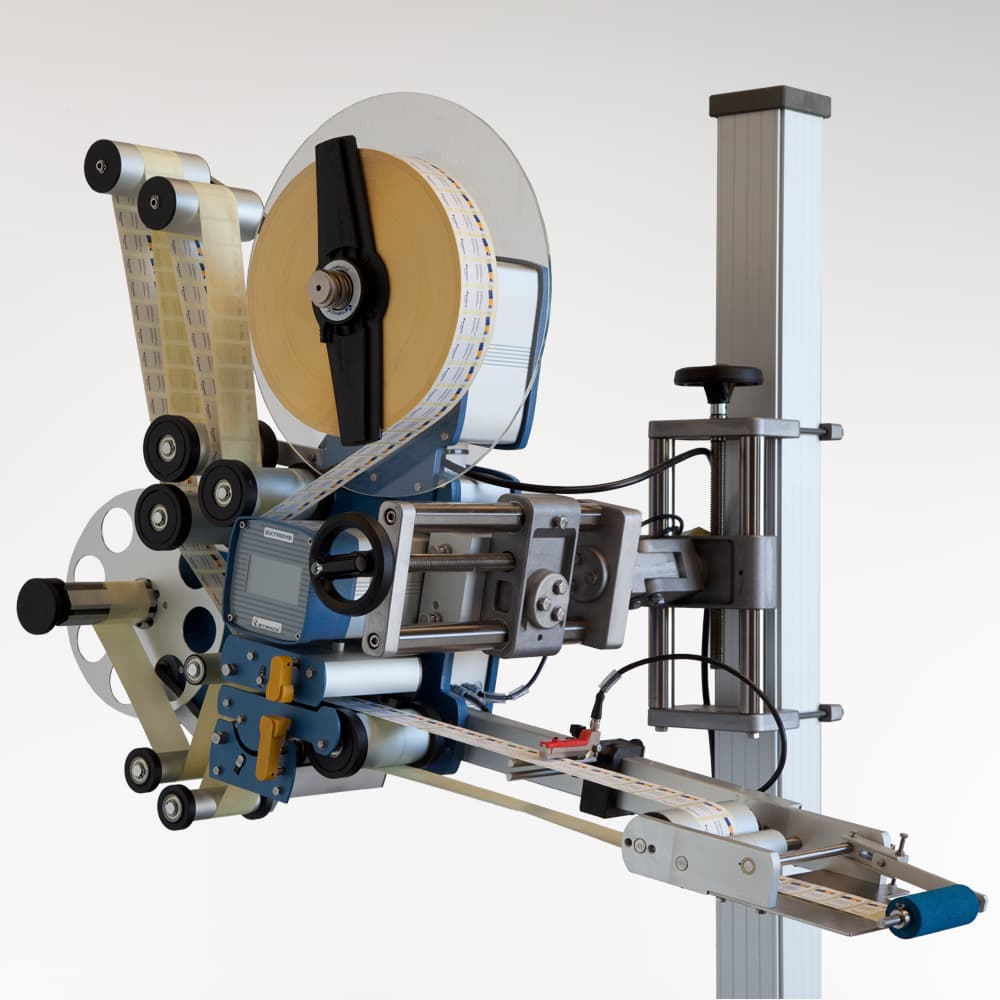

ETIPACK Extreme Series – Automatic Label Applicator
ETIPACK Extreme Series is an automatic label applicator for dispensing and applying labels to products, packages or containers on production lines. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Extreme is the automatic labelling machine ideal for appli cations that require high frequencies and maximum accu racy. The labelling machine is equipped with a an innovative multitasking electronics that, through encoder, manages multiple functions simultaneously. The new hybrid stepper motor allows optimal control on label distribution and tolerance range close to zero on stop. The touch screen allows changingsettings even when the machine is running.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Caratteristiche | 100 | 200 | 300 |
|---|---|---|---|
| Dispensing speed | ≤ 80 m/min | ≤ 80 m/min | ≤ 60 m/min |
| Dispensing W | 20 - 100 mm | 20 - 200 mm | 20 - 300 mm |
| Outside reel Ø | ≤ 380 mm | ≤ 380 mm | ≤ 380 mm |
| Inside reel Ø | 40 ÷ 75 mm | 40 ÷ 75 mm | 40 ÷ 75 mm |
| Motor | Hybrid stepper motor | Hybrid stepper motor | Hybrid stepper motor |
| Stop Tolerance | ± 0,5 mm | ± 0,5 mm | ± 0,5 mm |
| Size L - W - H | 696x384x707 mm | 696x484x707 mm | 696x638x757 mm |
| Power Supply | 115/230 V, 50-60 Hz | 115/230 V, 50-60 Hz | 115/230 V, 50-60 Hz |
| Electrical input | 300 W | 300 W | 300 W |
| Elettrical protection | IP 54 | IP 54 | IP 54 |
| Noise level | 70 dB | 70 dB | 70 db |
| Version | DX - SX | DX - SX | DX - SX |
