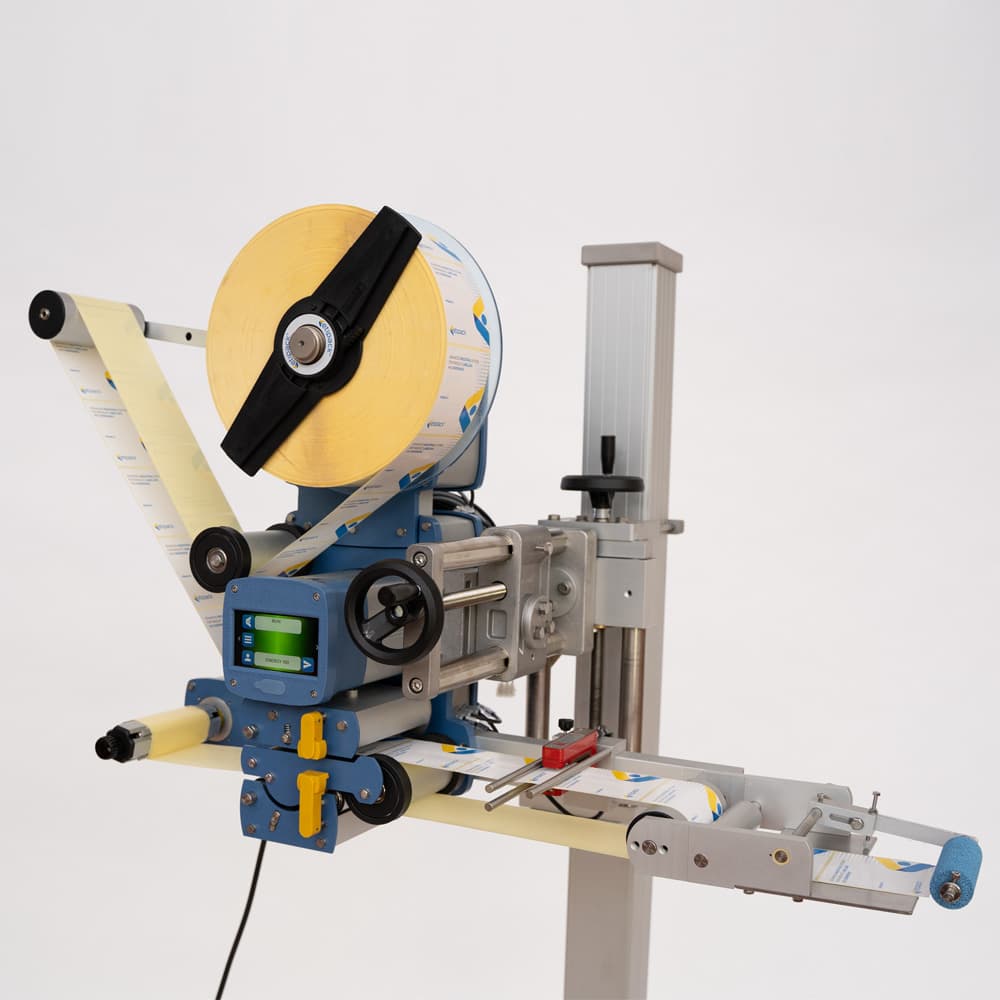

ETIPACK Energy Series – Automatic Label Applicator
ETIPACK Energy Series is an automatic label applicator for dispensing and applying labels to products, packages or containers on production lines. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Automatic Labelling Machine for Pressure-Sensitive Labels Speed up to 60 m/minute Features of the label applicator Unwinder with disc brake Clutch rewinder Display for parameters setting Control on reel end and paper jam Control on label stepper Pre-alarm on reel end Hybrid stepper motor
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Features | 100 | 200 | 300 |
|---|---|---|---|
| Dispensing speed | ≤ 60 m/min | ≤ 50 m/min | ≤ 20 m/min*1 |
| Dispensing W | 20 – 100 mm | 20 – 200 mm | 20 – 300 mm *2 |
| Outside reel Ø | ≤ 280 mm | ≤ 280 mm | ≤ 280 mm |
| Inside reel Ø | 40 – 75 mm | 40 – 75 mm | 40 – 75 mm |
| Motor | Hybrid stepper motor | Hybrid stepper motor | Hybrid stepper motor |
| Stop Tolerance | ± 0,5 mm | ± 0,5 mm | ± 0,5 mm |
| Size L – W – H | 581x319x722 mm | 611x419x752 mm | 611x578x802 mm |
| Power supply | 115/230 V, 50–60 Hz | 115/230 V, 50–60 Hz | 115/230 V, 50–60 Hz |
| Electrical input | 150 W | 150 W | 150 W |
| Elettrical protection | IP 54 | IP 54 | IP 54 |
| Noise level | 70 dB | 70 dB | 70 db |
| Version | DX – SX | DX – SX | DX-SX |
