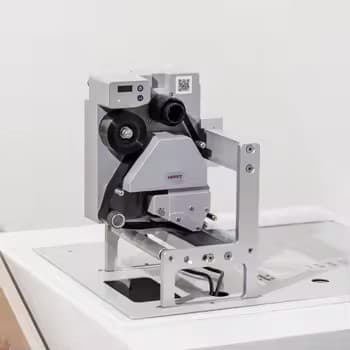

TTO DC24A Series
TTO DC24A Series is a thermal transfer overprinter for printing dates, batch codes, barcodes and text on flexible packaging films. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Model Name | DC24A | DC24A-E |
|---|---|---|
| Print Area | 24mm × 12mm | 24mm × 15mm |
| Resolution | 203 dpi (8 dots/mm) | |
| Print Speed | 20 mm/s – 200 mm/s | |
| Character Size | 2 mm – 4 mm adjustable | |
| Character Type | Chinese and English characters, numbers, punctuation | |
| Print Direction | 0° or 180° | |
| Time to Print | 100 ms (minimum retention time of packaging film) | |
| Scope of Application | Suitable for vertical wrapping devices (such as vertical wrapping machines, labeling machines, etc.) | |
| Applicable Device Capacity | 200 packs/min (print fixed content with a length of 15 mm) | |
| Printing Type | Production date, shelf life, sale period / auto batch number, batch code / time (accurate to the second) / factory number / machine number / custom text | |
| External Input | Print trigger input: NPN/PNP (12V–24V DC), microswitch | |
| External Output | Volt-free contact (for interlocking with packaging machine) | |
| Ribbon Length | 200 m | |
| Ribbon Type | Wax/Resin, Resin | |
| Packaging Materials | PVDC PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, VMPET, VMCPP and other films and composite films | |
| Power Supply | Adapter input: AC 100V–240V ±10%, 50–60 Hz, max. output current: 4 A | |
| I/O Interface | Print signal, fault relay, 0V/COM, DC 24V | |
