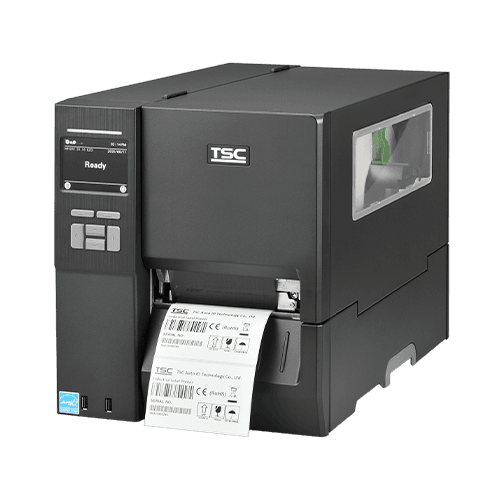

TSC MH241 / MH341 / MH641 Series – Industrial Barcode Printer
TSC MH241 / MH341 / MH641 Series is an industrial barcode printer for high-volume label and barcode printing in factories and warehouses. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| MH241 and MH261 Series | Data Sheet (STANDARD) | |||
|---|---|---|---|
| Model | MH241 | MH341 | MH641 |
| Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) | 24 dots/mm (600 DPI) |
| Printing method | Thermal Transfer and Direct Thermal | ||
| Max. print speed | 356 mm (14") / second | 305 mm (12") / second | 152 mm (6") / second |
| Max. print width | 104 mm (4.09") | ||
| Max. print length | 25,400 mm (1000") | 11,430 mm (450") | 2540 mm (100") |
| Enclosure | Die-cast print mechanism and base with bi-fold metal cover with large clear media view window | ||
| Physical dimension |
276 mm (W) × 326 mm (H) × 502 mm (D) 10.87" (W) × 12.83" (H) × 19.76" (D) |
||
| Weight | 15.60 kg (34.39 lbs) | ||
| Label roll capacity | 203.2 mm (8") O.D. | ||
| Internal rewinder (full roll) | Internal rewinding kit (5" O.D.) (dealer option) | ||
| Ribbon | 600 m long, max. O.D. 90 mm, 1" core (ink coated outside or inside) | ||
| Ribbon width | 25.4 mm – 114.3 mm (1" – 4.5") | ||
| Processor | 32-bit RISC CPU | ||
| Memory |
512MB Flash memory 256MB SDRAM microSD Flash memory card reader for Flash memory expansion, up to 32 GB |
||
| Interface |
RS-232 USB 2.0 (High speed mode) Internal Ethernet, 10/100 Mbps USB host ×2 (Front side), for scanner or PC keyboard GPIO (DB15F) + Centronics (factory option) Internal Bluetooth 5.0 MFi (factory option) Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) |
||
| Power |
Internal switching power supply Input: AC 100–240V, 4–2A, 50–60Hz Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W |
||
| LCD display / Operation buttons |
6 operation buttons 1 LED (with 2 LEDs Green & Red) |
||
| LCD | 3.5" color display, 320 × 240 pixel | ||
