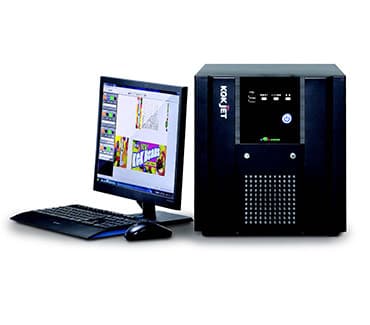

HQ8500 – High-Resolution Thermal Inkjet Printer
HQ8500 is a high-resolution thermal inkjet printer for printing text, barcodes, QR codes and variable data on products and packaging. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Saves space by combining multiple controllers into 1 unit. Print heads with different resolutions can be controlled simultaneously for a single print object. By combining the controllers required for each head one at a time, the work efficiency is greatly improved. Space saving around the conveyor. Maximum of 4 heads can be controlled per 1 controller. It is also possible to simultaneously control high resolution head and low resolution head for one work.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
Corresponding head
2558ch head
510ch head
1200ch head
384ch head
256ch head
256ch head
M800
| Printing system | |||||
|---|---|---|---|---|---|
| Piezo | Piezo | thermal | Piezo | Piezo | Piezo |
| Number of heads | |||||
| Up to 4 | Up to 4 | Up to 4 | Up to 4 | Up to 4 | Up to 5 |
| Print height in mm | |||||
| 108mm | 70mm | 49.3mm | 32.4mm | 130mm | 56.2mm |
| Number of channels | |||||
| 2558 | 510 | 1200 | 384 | 256 | 800 |
| Resolution in dpi | |||||
| 600dpi | 180dpi | 600dpi | 300dpi | 50dpi printhead in upright position | 360dpi |
| Printing speed in m/min | |||||
| 50 | 67 | 30 | 40 | 152 | 60 |
| Ink jetting direction | |||||
| horizontal or downward | horizontal or downward | horizontal or downward | horizontal or downward | horizontal or downward | horizontal or downward |
Inks
| oil based | UV curable | water based | alcohol based | Solvent based, printing styrofoam | |
|---|---|---|---|---|---|
| Head with 2258 ch（Y2558） | black | black, magenta, cyan and yellow | NA | NA | NA |
| Head with 510 ch（S510） | black, red and blue | NA | NA | NA | NA |
| Head with 1200 ch（H1200） | NA | NA | black | black | NA |
| Head with 384 ch（R384） | black | NA | NA | NA | NA |
| Head with 256 ch（K256） | black | NA | NA | NA | black, red, blue, green |
Controller specification
Multi-controller
| Number of print lines | No limit (any lines you can print as long as the font size is within the appropriate range) |
|---|---|
| Number of messages stored | Up to 9,999 messages |
| Printable characters | alphanumerical, signs, Japanese Hirakana, Katakana and Kanji and the fonts listed in the Windows fonts |
| Date, time printing | Year (Christian calendar year or Japanese calendar year)/month/date/time (12/24 hours)/minute/second and day of the week |
| Numbering | Up to 10 digits, up/down, repetition, increased value settable, zero-suppression, assigned character printing |
| Barcode | ITF, Code39, Code128, NW-7, JAN/EAN, GS1 data bar |
| 2D code | QR, Data Matrix and PDF417 |
| Graphics | Captured images in the BMP, JPG or PNG format, straight line, square line or circle line |
| External interface | USB memory, digital I/O, rotary encoder or RS232C and LAN |
| Operational environment | required 5 to 35 degrees C., 10 to 80% RH with no dew condensation |
| Power supply | AC100V ± 10%, 50/60 Hz and 1000W or lower |
Dimensional drawing
