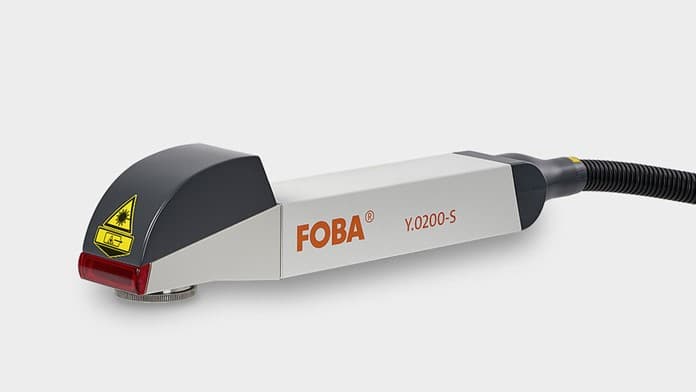

FOBA Y.0200-S Fiber Laser
FOBA Y.0200-S Fiber Laser is an industrial laser marking system for permanent, ink-free marking of text and codes on parts and packaging. Biz Nakhon provides product selection, integration, installation and after-sales support in Thailand.
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Technical specifications | |
|---|---|
| Marking head | CP10 with various precision optics for focusing (f = 100/163/254/420 mm) |
| Marking field* | 2 (f = 100 mm) up to 498 x 367 mm2 (f = 420 mm) |
| Marking speed* | Up to 10 m/s (600 m/min) |
| Laser source | |
| Type | Pulsed Ytterbium fiber laser (Yb), 100W, several pulse frequency ranges, wavelength 1064 nm |
| Laser class | 4 (acc. to IEC 60825-1) |
| User Interfaces | |
|
|
| Supply | |
| Electrical requirements | L/N/PE 100 – 240 VAC, 50/60 Hz |
| Power consumption | 700 VA max |
| IP rating |
|
| Cooling | Air-cooled, auto overheat protection |
| Temperature | 10 - 35° C, up to 40°C with a duty cycle of 70% |
| Humidity | 10 - 90 %, non-condensing |
| Weight |
|
| Scope of delivery, options and accessories | |
| Scope of delivery | Fiber laser marker with selectable tunings (High-Q tuning, High-S tuning) and pilot laser |
| Options, accessories |
|
